YD-PC201 - Phenolic cotton sheets
Phenolic Cotton Sheets: Excellent electrical insulation performance, high-temperature resistance, corrosion resistance, high mechanical strength, suitable for harsh environments.
* If you are well-informed about the Phenolic cotton sheets and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
YD-PC201 – Phenolic cloth sheets, also known as phenolic resin fabric laminated sheets, is a high-density laminated material made by combining phenolic resin with fabric base materials (such as cotton or glass cloth) through a hot-press process. This material is widely used across various fields due to its outstanding physical, mechanical, and electrical properties, especially in the manufacture of electrical insulation and mechanical structural parts.
Click to view more detailed information about phenolic laminated cloth ←
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-PC201 - 3025 Phenolic Coarse Cloth Sheets |
| Base Material | Epoxy resin + coarse fabric substrate |
| Color | Red brown |
| Thickness | Generally ranging from 0.5mm to 100mm |
| Size | The regular sizes are 1020x2020mm and 1220x2440mm; Special sizes, we can produce and cut according to customer requirements. |
| Density | 1.45-1.5g/cm³ |
| Specification Overview | |
|---|---|
| Name | YD-PC203 - 3026 Phenolic Coarse Cloth Sheets |
| Base Material | Epoxy resin + fine cotton cloth |
| Color | Light brown |
| Thickness | Generally ranging from 0.5-100mm |
| Size | The regular sizes are 1020x2020mm and 1220x2440mm; Special sizes, we can produce and cut according to customer requirements. |
| Density | 1.45-1.5g/cm³ |
Product Features
- High Compressive Strength (>= 250 MPa): Provides reliable mechanical support and withstands heavy loads in motors and industrial equipment.
- High Flexural Strength (>= 100 MPa): Resists bending and maintains structural stability during machining and long-term operation.
- Reliable Dielectric Strength (>= 10 kV/mm): Provides dependable electrical insulation for motors, transformers and low-voltage electrical components.
- Low Water Absorption (<= 1.5%): Helps maintain stable dimensions and electrical properties under normal operating conditions.
- Class E Heat Resistance (120 deg C): Suitable for continuous use at temperatures up to 120 deg C under normal working conditions.
- Stable Material Density (1.30-1.45 g/cm3): Combines mechanical strength with good machinability for gears, spacers and custom insulation parts.

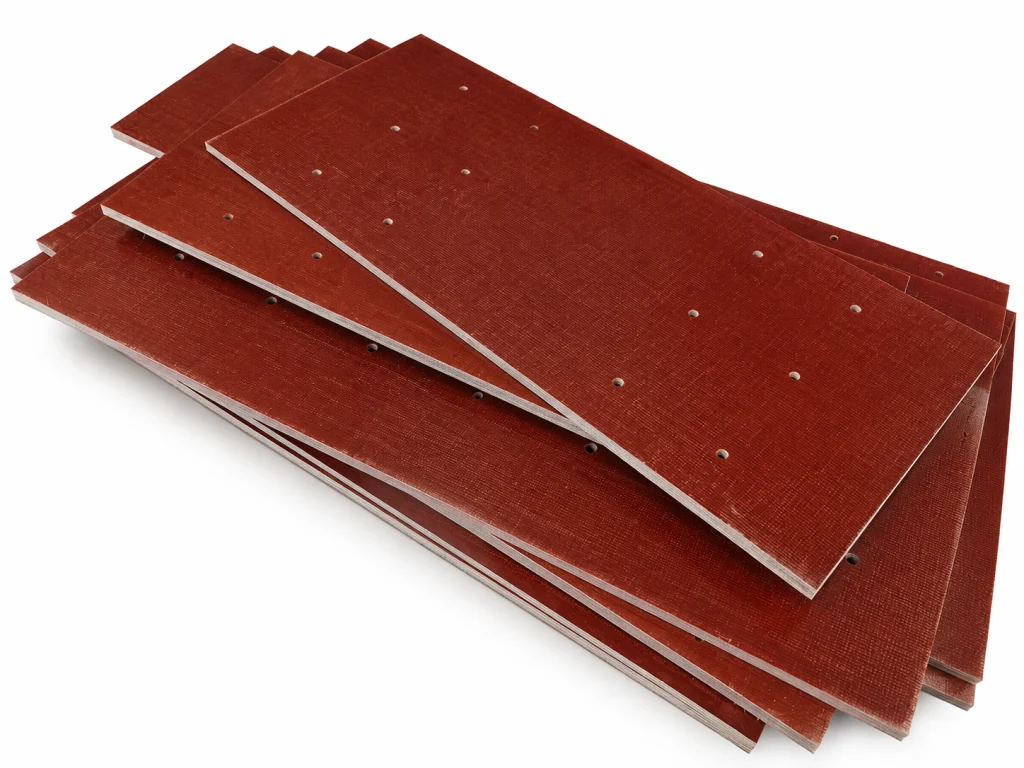

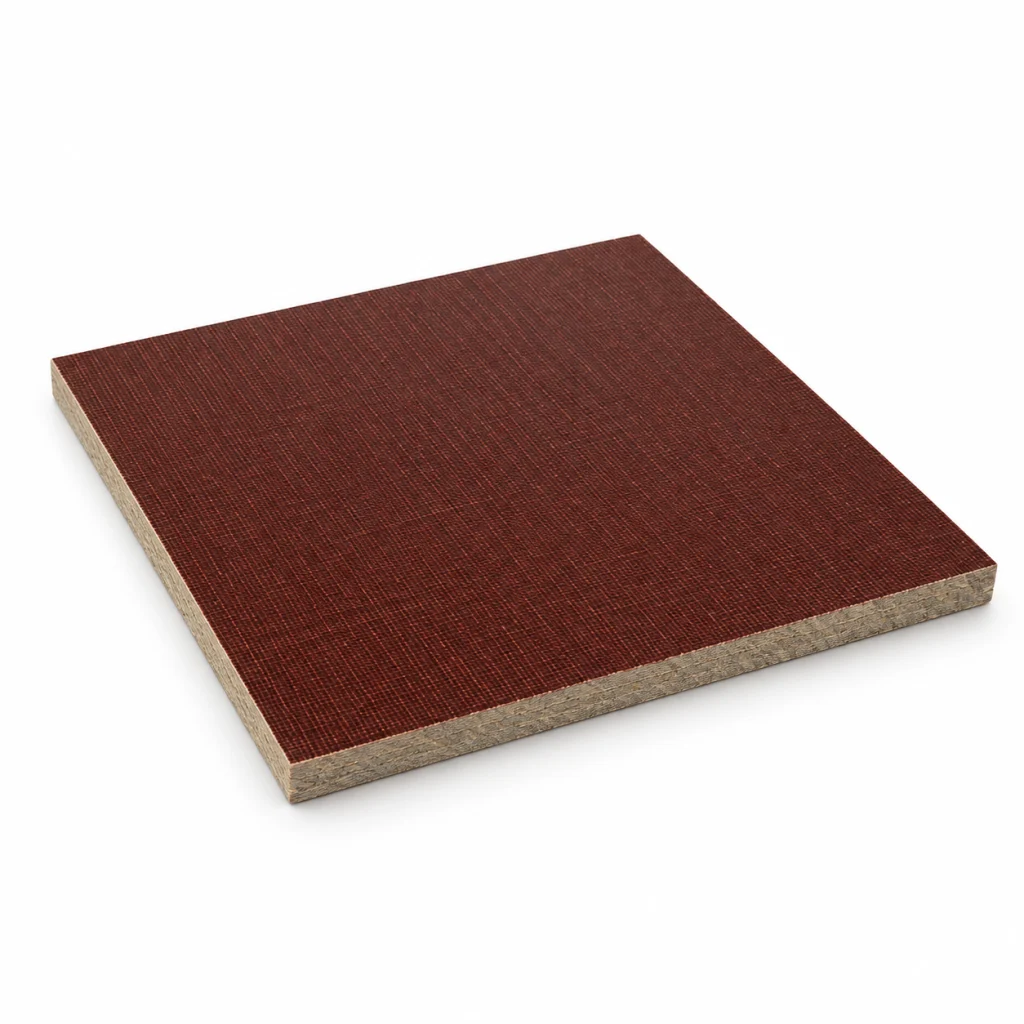

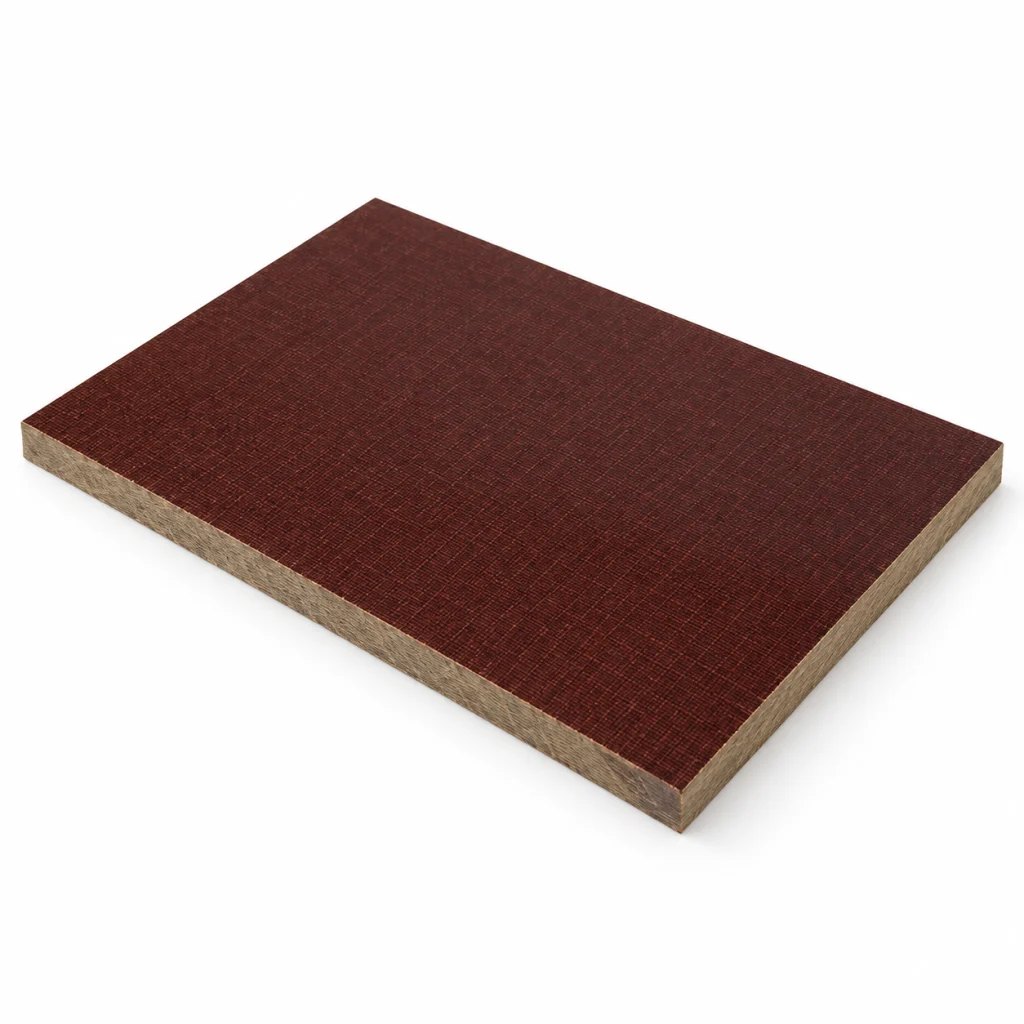

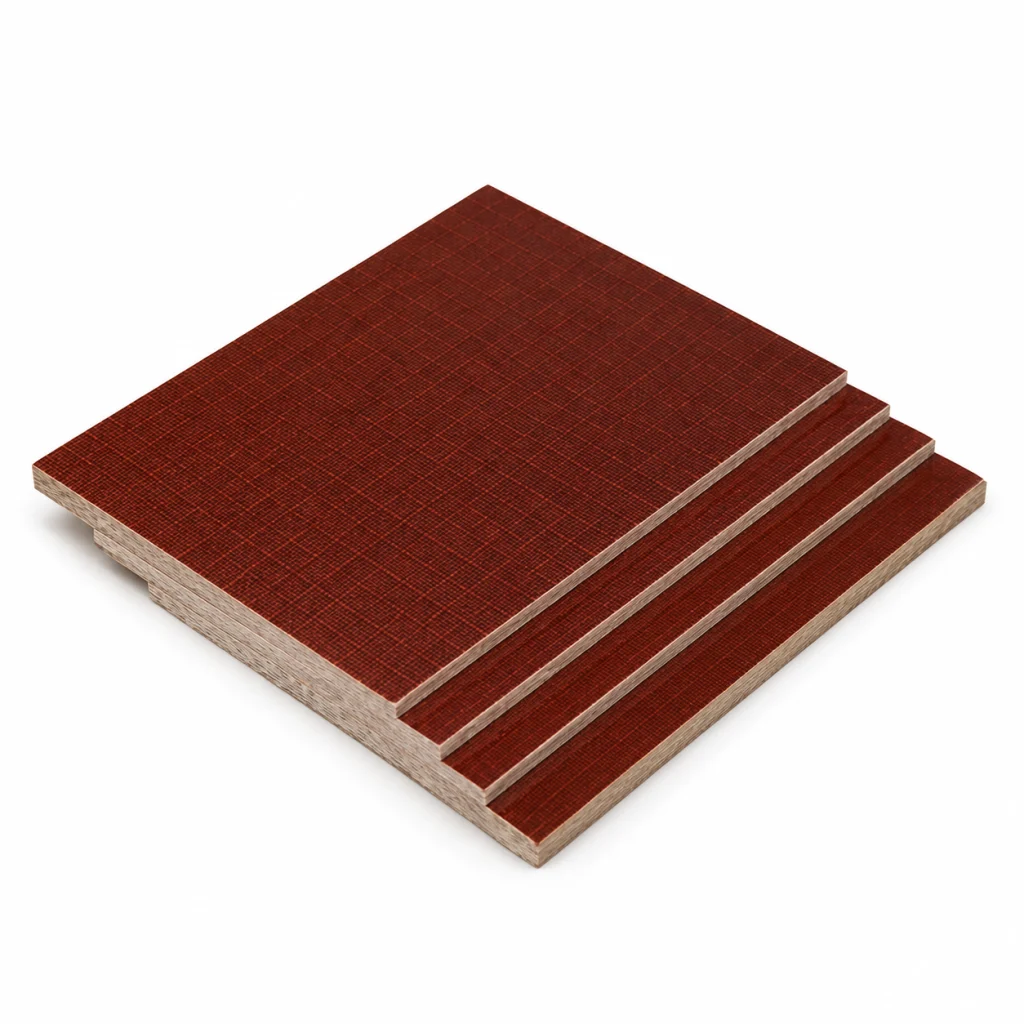

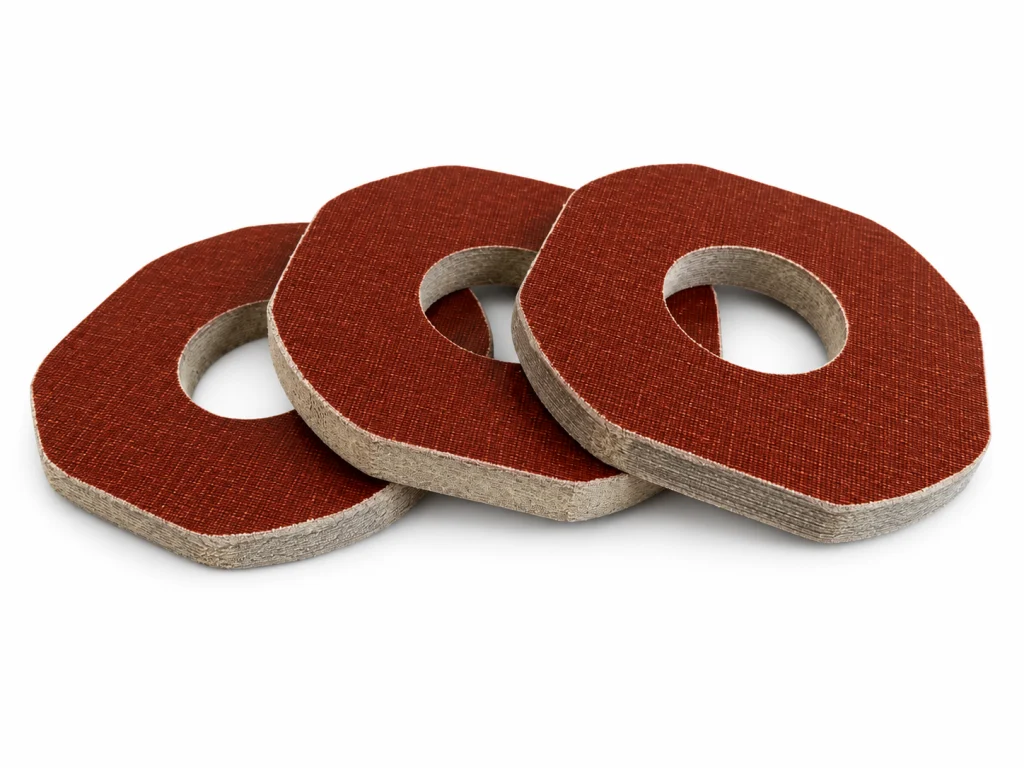

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
