YD-FG203 - G10 multicolour sheets
G10 Multicolour Sheets: Waterproof, wear-resistant, high strength, good stability, suitable for knife manufacturing.
* If you are well-informed about the G10 Multicolour Sheets and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
G10 Multicolour Sheets refer to laminated composite materials made from fiberglass and epoxy resin, similar to standard G10 sheets, but with multiple colors integrated into a single sheet. These sheets are designed to provide not only the exceptional strength, wear resistance, and waterproof performance associated with G10 material but also aesthetic appeal through the incorporation of various colors. The multicolored layers are visible along the edges and surfaces, making these sheets especially popular for applications requiring both functionality and visual interest, such as in custom knife handles, jewelry, and other decorative items. The manufacturing process involves layering colored fiberglass cloth with epoxy resin and then curing under heat and pressure, resulting in a durable, stable, and visually striking material.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-FG203 - G10 Multicolour Sheets |
| Base Material | Epoxy Resin + Glass Fiber |
| Color | Green\yellow\red\black\white,etc (Color can be customized according to customer requirements) |
| Thickness | 0.3mm – 150mm ( More than 300mm can be produced according to product requirements) |
| Size | Standard sizes are 1020x1220mm; for special sizes, we can produce and cut according to customer's requirements. |
| Density | 2.0g/cm³ |
| Product Technical Specifications | ||||
|---|---|---|---|---|
| Specification Name | Unit | Specification Value | ||
| Density | g/cm³ | 2.0 | ||
| Water Absorption | % | ≤ 0.5 | ||
| Flexural Strength Perpendicular to Laminations | MPa | ≥ 340 | ||
| Compressive Strength Perpendicular to Laminations | MPa | ≥ 350 | ||
| Impact Strength Parallel to Laminations (Charpy method with notch) | KJ/m² | ≥ 37 | ||
| Shear Strength Parallel to Laminations | MPa | ≥ 34 | ||
| Tensile Strength | MPa | ≥ 300 | ||
| Dielectric Strength Perpendicular to Laminations at 90°C ± 2°C in oil | 1mm | KV/mm | ≥ 14 .2 | |
| 2mm | ≥ 11 .8 | |||
| 3mm | ≥ 10 .2 | |||
| Breakdown Voltage Parallel to Laminations at 90°C ± 2°C in oil | kV | ≥ 40 | ||
| Dielectric Dissipation Factor (at 50 Hz) | – | ≤ 0 .04 | ||
| Insulation Resistance Normal | Normality | Ω | ≥ 5 .0 × 1012 | |
| After 24 hours immersion in water | ≥ 5 .0 × 1010 | |||
| Flammability (UL-94) | Rating | V- 0 | ||
Product Features
- High Flexural Strength (>= 350 MPa): Provides excellent rigidity and resistance to bending during heavy-duty use and precision machining.
- High Tensile Strength (>= 300 MPa): The woven fiberglass structure delivers reliable strength and long-term durability for demanding knife applications.
- High Compressive Strength (>= 350 MPa): Resists clamping pressure, mechanical loads and impact during assembly and daily use.
- Low Water Absorption (<= 0.10%): Maintains stable dimensions and reliable performance in wet, humid and outdoor environments.
- Excellent Impact Resistance (Charpy Impact Strength: >= 33 kJ/m2): Helps prevent cracking or chipping when exposed to drops, vibration and repeated impact.
- Good Heat Resistance (Continuous Use: Up to 130 deg C): Maintains stable mechanical properties during grinding, polishing and normal high-temperature use.
- High Hardness (Rockwell M: 100-115): Provides excellent resistance to surface wear, scratches and repeated handling.
- Stable Material Density (1.80-2.00 g/cm3): Provides a solid, balanced feel without adding excessive weight to the finished knife.

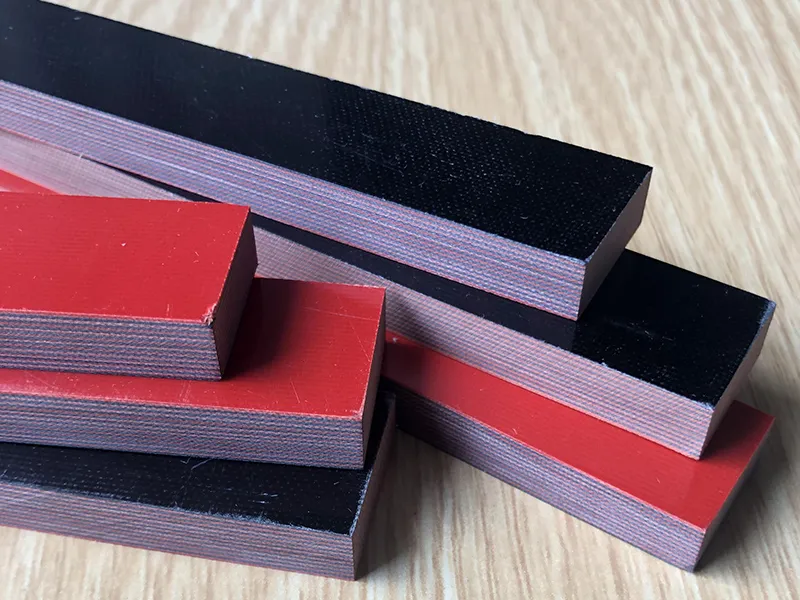

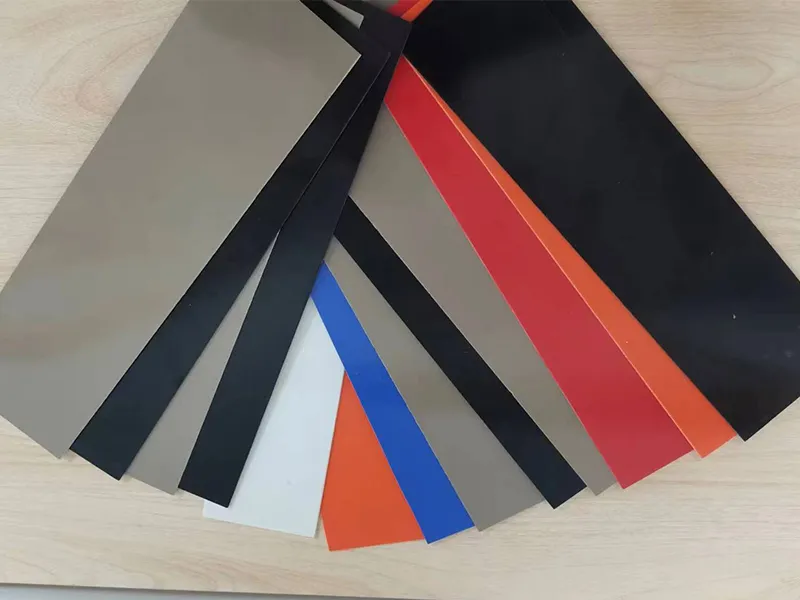

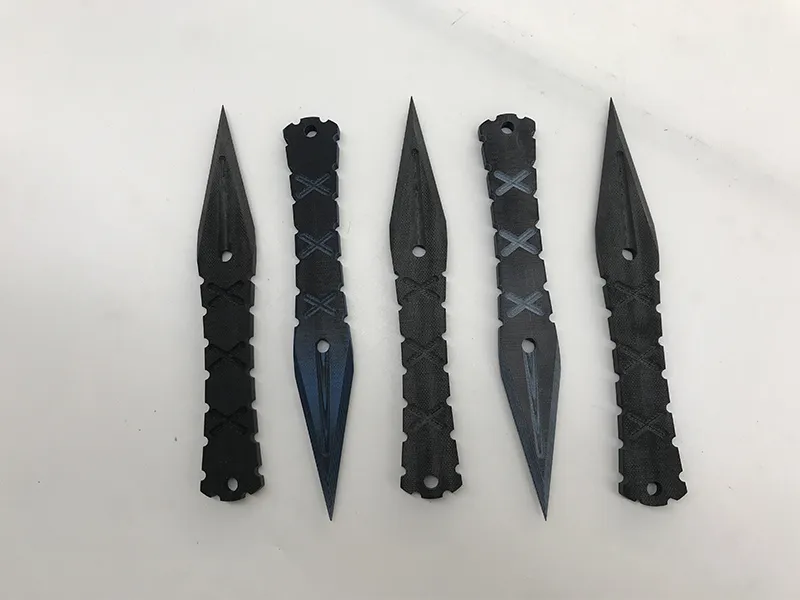

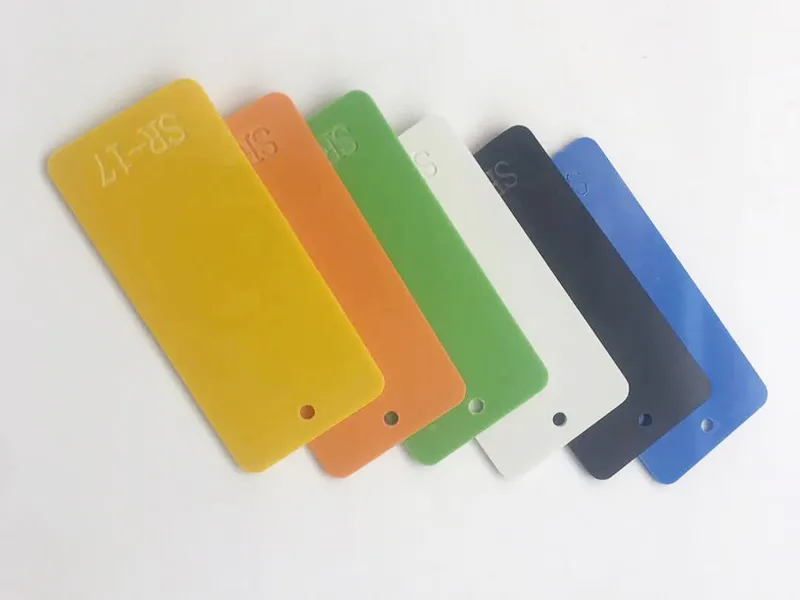

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
