YD-FG101-3240 Epoxy Glass Cloth Laminated sheets
3240 Epoxy Sheets: Excellent electrical properties, high mechanical strength, stable insulation performance, suitable for a variety of industrial applications.
* If you are well-informed about the 3240 epoxy sheets and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
The YD-FG101- 3240 epoxy sheets is a laminated board made from electrical grade glass cloth impregnated with epoxy resin, which is then dried and hot-pressed. This type of board has high mechanical and dielectric performance, good heat resistance and moisture resistance, and is also well-suited for mechanical processing. Its heat resistance is classified as Grade B. It is widely used in motors and electrical equipment as insulating structural components and can be used in humid and warm environments and transformer oil. Furthermore, its full name is epoxy laminated glass cloth board, and its surface is required to be smooth, without bubbles, hemp pits, or wrinkles, but other defects that do not affect its use, such as scratches, indentations, stains, and a small amount of spots, are permissible.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-FG101 3240 Epoxy Glass Cloth Laminated Sheets |
| Base Material | Epoxy Resin + Glass Fiber |
| Color | Yellow |
| Thickness | 0.2mm – 150mm (thicknesses above 300mm can be produced according to product requirements) |
| Size | Standard sizes are 1020x2020mm, 1220x2440mm 1580x3250mm; for special sizes, we can produce and cut according to customer's requirements. |
| Density | 2.0–2.2g/cm³ |
Product Features
- High Flexural Strength (>= 340 MPa): Provides excellent rigidity and resistance to bending for electrical and mechanical components.
- High Compressive Strength (>= 300 MPa): Withstands mechanical pressure and provides stable structural support under demanding working conditions.
- Reliable Dielectric Strength (>= 15 kV/mm): Provides dependable electrical insulation for transformers, motors, switchgear and electrical equipment.
- Low Water Absorption (<= 0.5%): Helps maintain stable dimensions and insulation performance under normal humid conditions.
- Class B Heat Resistance (130 deg C ): Suitable for continuous operation at temperatures up to 130 deg C under normal working conditions.
- Precision CNC Machining (Tolerance: Up to +/- 0.10 mm): Supports cutting, drilling, milling and customized component production according to drawings.
- Wide Thickness Range (0.2-150 mm): Available in standard sheets, cut-to-size panels and customized machined components.

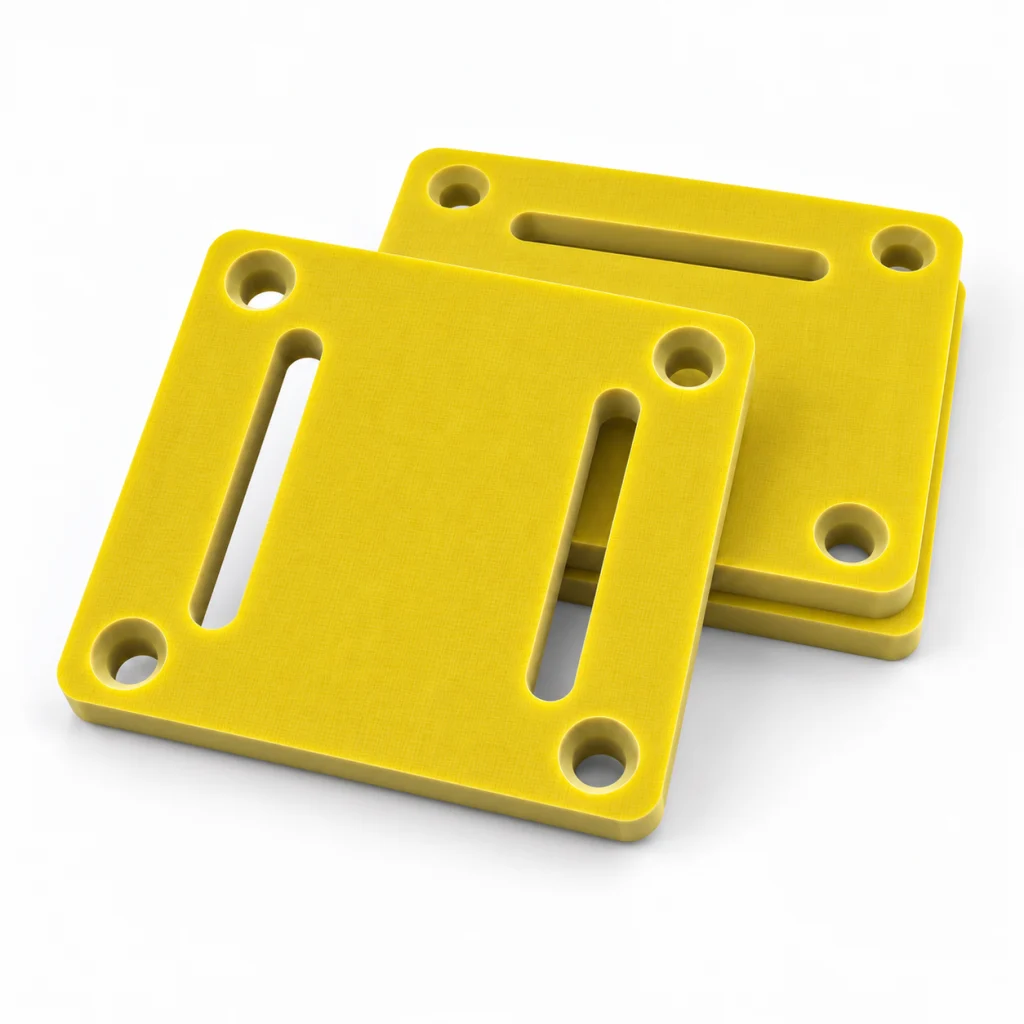

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
